E840-0300EPA-60 Mitsubishi Electric
$ 29,665
IVA incluido.
Envío gratis desde $2,499.
Precio en MXN
Compra en las siguientes [totalHours] horas %M minutos y recibe:
Envío express el
Envío regular el
Envío express el
Envío regular el
Aceptamos 6 MSI con tarjetas de Crédito
Descripción
E840-0300EPA-60

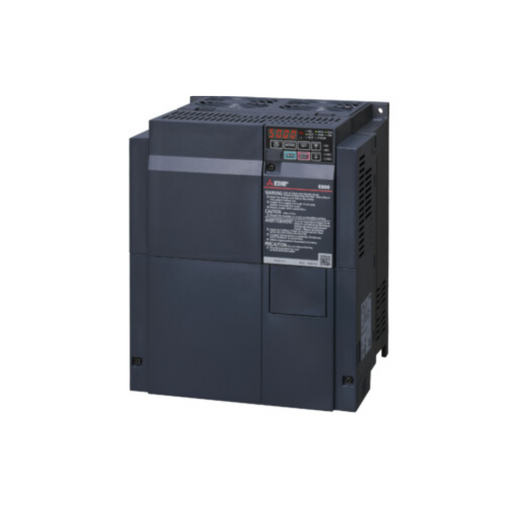

El Inverter Mitsubishi Electric E840-0300EPA-60 es ideal para aplicaciones industriales que requieren control preciso de motores de 15 a 18,5 kW. Compatible con Ethernet/IP y protección IP20, ofrece confiabilidad, eficiencia y rendimiento en sistemas de automatización.
| FA-Inverter | Inverter |
| Series | FR-E800 SERIES |
| Type | FR-E800-ETH INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current LD (A) | 41 |
| Rated Output Current ND (A) | 30 |
| Rated Motor Capacity LD (kW) | 18,5 |
| Rated Motor Capacity ND (kW) | 15 |
| Frequency Range (Hz) | 0,2–590 |
| Control Method | MAGNETIC FLUX VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, REAL SENSORLESS VECTOR CONTROL, V/F CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Brake Chopper ED (%) | 100 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 2K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 2 |
| Digital Outputs (Transistor) | 0 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 0 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | NO |
| USB | 1 (MINI B) |
| Ethernet Port | 2 |
| Built-In Network | MODBUS/TCP, ETHERNET/IP, CC-LINK IE TSN, CC-LINK IE FIELD BASIC, BACNET/IP |
| Leakage Current (mA) | 1,2 |
| Power Loss LD (W) | 487 |
| Power Loss ND (W) | 322 |
| Protection Class | IP20 |
| Depth (mm) | 190 |
| Weight (kg) | 4,9 |
| Width (mm) | 220 |
| Height (mm) | 260 |
| CE | COMPLIANT |
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
