módulo CC-link compacto de 32 salidas, (sink) 0.5A. Tornillo
$ 9,794
IVA incluido.
Envío gratis desde $2,499.
Precio en MXN
Aceptamos 6 MSI con tarjetas de Crédito
Descripción
módulo CC-link compacto de 32 salidas, (sink) 0.5A. Tornillo

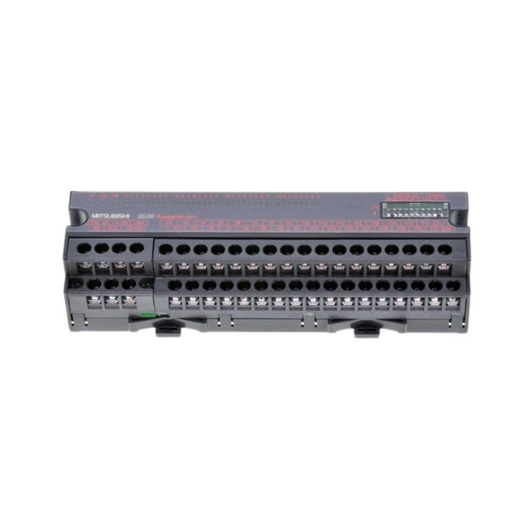

El AJ65SBTB1-32T1 de Mitsubishi Electric es un módulo CC-link compacto con 32 salidas tipo transistor (sink), diseñado para aplicaciones de automatización industrial que requieren fiabilidad y precisión. Con un diseño robusto y conexiones por tornillo, ofrece facilidad de instalación y eficiencia en entornos exigentes.
| Series | CC-LINK |
| Type | REMOTE TRANSISTOR OUTPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Outputs | 32 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Rated Load Voltage (VDC) | 12-24 |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,065 |
| Depth (mm) | 40 |
| Weight (kg) | 0,25 |
| Width (mm) | 179 |
| Height (mm) | 50 |
| CE | COMPLIANT |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
